Create a freezer including shelves and racks


This guide will describe the process to create a freezer plus all ‘structures’ contained into this freezer:

  • One or many shelves.
  • One or many racks per shelf.

Data Record

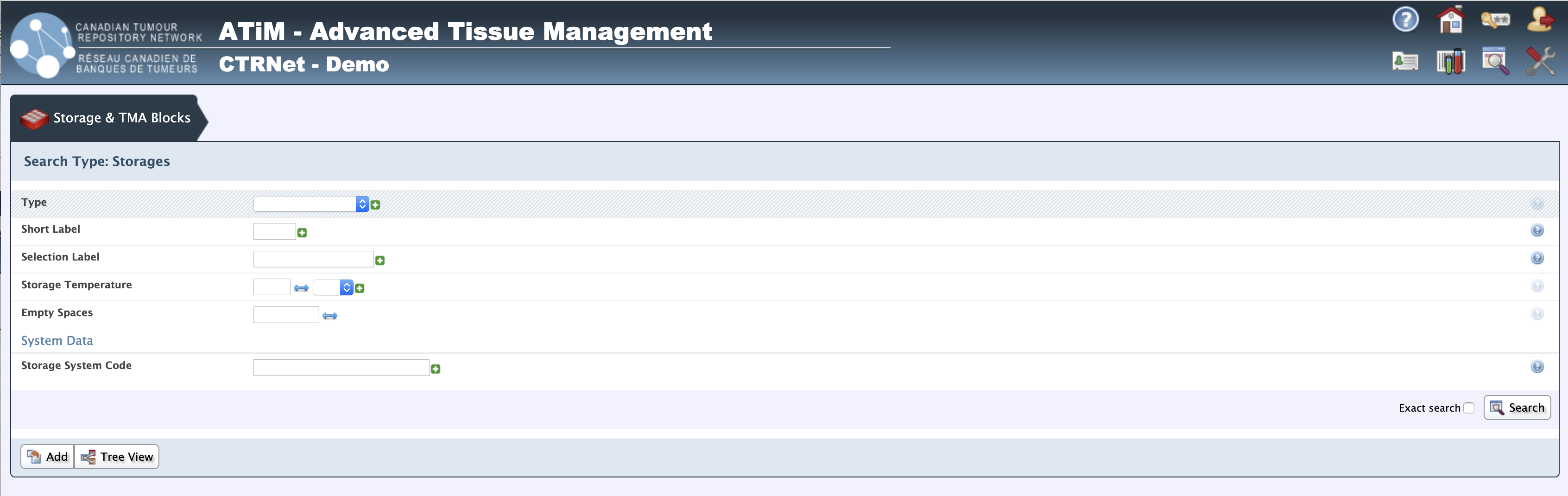

  1. From Tools in the Home Menu Open Storage Layout tool.
  2. Click on ‘Add’ button to create a freezer (you may have to scroll down).
  1. Enter freezer data and submit.
  1. Click on ‘Add To Storage’ button to add a shelf.
  1. Enter shelf data and submit.
  2.  Click on ‘Add To Storage’ button to add a rack.
  1. Click on ‘Parent Storage’ twice to return to step 4 to create other shelves and racks.

Visualize Freezer

  1. From Storage Layout Menu option, click on tree view.
  2. Click the green arrow that is next to the freezer you wish to visualize.
  3. From the drop down menu choose Content Tree view.
  1.  Browse the tree view clicking on the ‘Expand’ icons.
  2. Display content details on the right side of the form clicking on the storage icon.


The process detailed above could be reproduced to create:

  • Fridge plus all its shelves, etc.
  • Nitrogen container plus all its racks, etc.
  • Room plus all its freezers, fridges, cupboard, etc.
